Product Features
Low insertion loss
Wide wavelength range
Low crosstalk
Compact structure
Switch speed is quick
Application
Passive optical networks
Light protection system
Measurement system
Network monitoring
Technical specification
Type | 1x2 | |
Operating Wavelength (nm) | 1310 or 1550 | |
Bandwidth (nm) | ±40 | |
Excess Loss (dB) | ≤1.0 | |
Coupling Ratio (%) | 1/99 | ≤21.6/0.6 |
2/98 | ≤18.6/0.7 | |
3/97 | ≤16.3/0.8 | |
5/95 | ≤14.6/0.9 | |
10/90 | ≤11.5/1.0 | |
20/80 | ≤8.1/1.7 | |
30/70 | ≤6.1/2.3 | |
40/60 | ≤4.8/3.0 | |
50/50 | ≤3.8/3.8 | |
Extinction Ratio (dB) | ≥20 | |
Return Loss (dB) | ≥50 | |
Fiber Type | Panda fiber | |
Package Dimension (mm) | φ5.5×L38 | |
Maximum Power Handling (mW) | ≤300 | |
Operating Temperature (℃) | -0 to +70 | |
Storage Temperature (℃) | -40～+85 | |
*Above specifications are for devices without the connectors.
*For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower. The default connector key is aligned to slow axis.
Biaxial work
Port1 is the incoming optical end,Port2 is the small spectral ratio, and Port3 is the large spectral ratio.

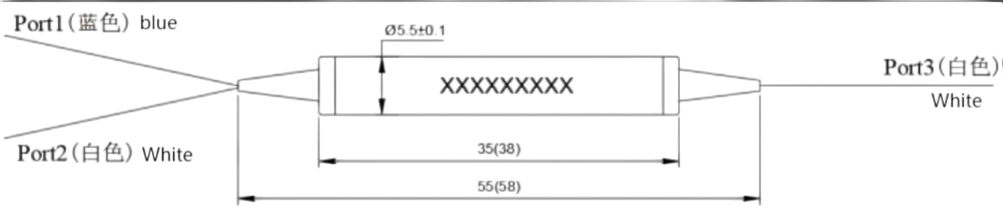

![(LGNH)YT6[0OV83JIN2%7]7.png](/storage/uploads/20230316/202303161430078151.png "(LGNH)YT6[0OV83JIN2%7]7.png")
Slow axis work, fast axis cut-off
Port3 is the incoming optical end,Port2 is the small spectral ratio, and Port1 is the large spectral ratio.
Ordering information HC-PMIS-1×2-A-B-C-D-E-F
A | B | C | D | E | F | |
PMIS | Wavelength | Coupling Ratio | Axis Alignment | Pigtail Type | Length | Connector |
1310=1310nm 1550=1550nm
| 1/99 2/98 3/97 …… 50/50
| F=Fast Axis Blocked B=Both Axis Working
| 1=250um 2=900um loose tube 3=3mm loose tube
| H=0.5m 8=0.8m 1=1.0m 5=1.5m 2=2m
| 0=None 1=FC/UPC 2=FC/APC 3=SC/APC 4=SC/UPC 6=LC/PC |
