The Optical Power Meter (OPM) has various types and can be used for offline and online real-time alarm testing.By monitoring the light power, the purpose of real-time warning test can be achieved.
Module parameters：

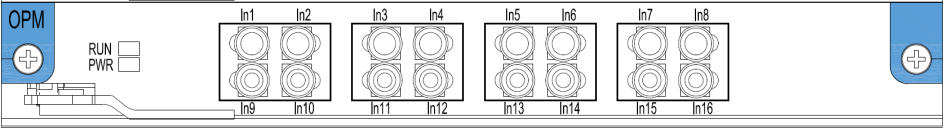

Optical power detection module
Detection wavelength：1310nm/1550nm
On-line input optical power range：-50dBm～+23dBm
According to the unit：dBm
The resolution of the：0.01dB
stability：±0.2dB
Optical interface type：LC/PC
Monitor the number of light channels：
Off-line: Select [0.5U height: 2~16] and [1U height: 16~32] ports as required;
Each route takes up 2 ports.
Online: Select [0.5U height: 3~15] and [1U height: 15~30] ports as required;
Each route takes up three ports.
If you need more support , Please contact us.
