Phase Modulator

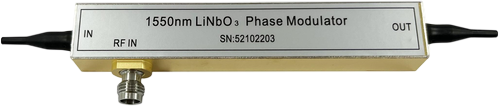

Product introduction
HC-QN series electro-optic phase modulators use the electro-optic effect of lithium niobate crystal to realize the phase modulation of optical signals, and use titanium diffusion or proton exchange technology to manufacture optical waveguides, which can realize dual-polarization or single-polarization phase modulation. Has that characteristic of low insertion loss, high modulation bandwidth, low half-wave voltage, high damage optical pow and the like, and is mainly applied to the fields of optical chirp control in a high-speed optical communication system, phase delay in a coherent communication system, optical sideband generation, phase modulation in quantum communication, stimulated Brillouin scatter (SBS) reduction in an analog optical fiber communication system and the like.
Product features
Multiple operating wavelength
Low half-wave voltage
Low insertion loss
High damage optical power
Scope of application
Optical fiber sensing
Optical fiber communication and laser coherent combination
Phase Retardation (Shifter)
Quantum communication
![VL`~H{W@`I2ICP(}63J]95T.png](/storage/uploads/20240220/202402201535379944.png "VL`~H{W@`I2ICP(}63J]95T.png")

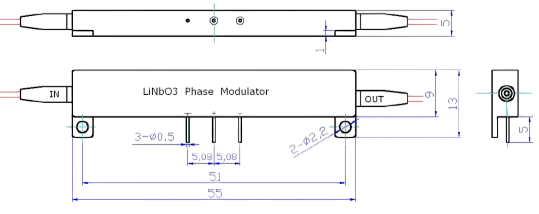

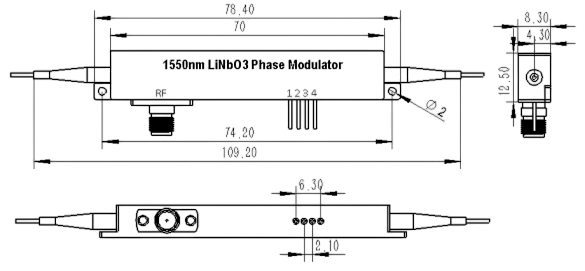

Technical Parameter
Parameter | Symbol | QN-08 | QN-10-300M | QN-10-10G | QN-15-300M | QN-15-10G | QN-15-18G |
Operating wavelength | l | 770-880nm | 1064±60nm | 1550±100nm | |||
Insertion loss | IL | <5 dB | <4 dB | <4 dB
| |||
Optical return loss | ORL | -40 dB | -45 dB | -45 dB | -45dB | -45dB | -40dB |
Operating bandwidth (-3dB) | S21 | 10GHz | 300MHz- | 10GHz- | 300MHz | 10GHz | 18GHz |
Rise time 10% ~ 90% | tr | 35ps | 1ns | 35ps | 1ns | 35ps | 18ps |
Half-wave voltage Vpi @ 50KHz | Vπ | 5V | 4V | 4.5V | 4V | 4V | 5V |
Input impedance | ZRF | 50W | 1MW | 50W | 1MW | 50W | 50W |
Electrical interface | 2.92mm(f) | 2pin | 2.92mm(f) | 2pin | 2.92mm(f) | 2.92mm(f) | |
Electrical return loss | S11 | <-10dB | |||||
Input and output optical fiber | QN Panda Slow Axis Alignment | ||||||
Fiber optic interface | FC/APC or Customer Specified | ||||||
Operating temperature | Top | -10~60°C | |||||
Storage temperature | Tst | -40~80°C | |||||
Electrical signal input power | Pi | <28dBm | |||||
Maximum input optical power | Po | 20mW | 100mW | 100mW | 100mW | 100mW | 100mW |
Ordering information HC-QN-WL-BW-PP-FA
WL - Working wavelength: 15-1550nm,10-1064nm
BW - Working bandwidth: 10GHz, 300M
If you need more support , Please contact us .
