Product introduction

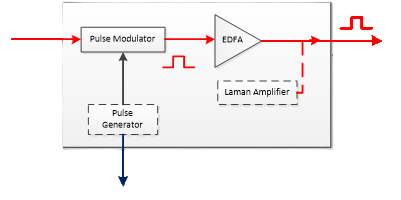

HC-PLM series pulse modulation and amplification module integrates semiconductor optical amplifier (SOA), pulse erbium-doped fiber amplifier (EDFA) and its supporting temperature control and modulation circuits, and can output optical pulse signals with the narrowest pulse width of 2 ns and peak power of 100 W. At the same time, a built-in pulse signal source can be selected, which has the characteristics of fast rise time, high pulse extinction ratio, good stability and convenient use, so that it becomes an ideal choice for generating and amplifying pulsed light in various optical fiber sensing systems, and can also be applied to quantum communication systems, semiconductor testing and other aspects.
Product features
Software-adjustable pulse width
Rise/fall time < 2 ns
Adjustment range 5 ns ~ 500 ns
Repetition frequency 1Hz-1MHz
Integrating SOA and EDFA
Lectable electric pulse sources
Optional Raman Optical Amplifier 500 mW
Output peak power < 1 W
High extinction ratio
DC 5V power supply
RS232 serial communication
Upper computer control
Module encapsulation
Scope of application
DVS & DAS System
BOTDR & BOTDA System
Homodyne coherent detection system
if you need more supports, please contact us.
