2×2 Bypass Optical Switch
Feature
Low IL
Fast switch time
Compact structure
Application
Protection
PON Network
Instrumentation
Network monitor
Technical Parameters
|
Parameters |
Unit |
HC-OSW-2×2B |
|
|
Operating Wavelength |
nm |
SM:1260~1620 |
MM:850±40 |
|
Test Wavelength |
nm |
1310 / 1550 |
850 |
|
Insertion Loss |
dB |
≤0.8（typical :0.6） |
|
|
Wavelength Dependent Loss |
dB |
≤0.25 |
|
|
Temperature Dependent Loss |
dB |
≤0.2 |
|
|
Polarization Dependent Loss |
dB |
≤0.05 |
|
|
Return Loss |
dB |
SM≥50，MM≥30 |
|
|
Crosstalk |
dB |
SM≥55，MM≥35 |
|
|
Repeatability |
dB |
≤±0.02 |
|
|
Swtich Time |
ms |
≤8 |
|
|
Durability |
times |
≥10 million |
|
|
Operating Voltage |
V |
3.0 or 5.0 |
|
|
Optical Power |
mw |
≤500 |
|
|
Operating Temperature |
℃ |
-5~+70 |
|
|
Storage Temperature |
℃ |
-40~+85 |
|
|
Operating Humidity |
RH% |
5~95 |
|
|
Dimension |
mm |
L27xW12xH8.2 |
|
|
Note:1.Within operating temperature and all SOP. |
|||
|
2.Excluding connector, and add 0.2dB IL for each connector. |
|||
Pin Configurations
|
Type |
State |
Optical Route |
Electric Drive |
State Sensor |
||||||
|
2x2B |
Pin 1 |
Pin 5 |
Pin 6 |
Pin 10 |
Pin 2-3 |
Pin 3-4 |
Pin 7-8 |
Pin 8-9 |
||
|
Latching |
A |
P1-P4 |
- |
- |
GND |
V+ |
Close |
Open |
Open |
Close |
|
B |
P1-P3 |
V+ |
GND |
- |
- |
Open |
Close |
Close |
Open |
|
|
P2-P4 |
||||||||||
|
Non- latching |
A |
P1-P4 |
- |
- |
- |
- |
Close |
Open |
Open |
Close |
|
B |
P1-P3 |
- |
- |
- |
GND |
Open |
Close |
Close |
Open |
|
|
P2-P4 |
||||||||||
Electrical Specification
|
Type |
Voltage |
Current |
Resistance |
|
5V Latching |
4.5~5.5V |
36~44mA |
125Ω |
|
5V Non-latching |
4.5~5.5V |
26~32mA |
175Ω |
|
3V Latching |
2.7~3.3V |
54~66mA |
50Ω |
|
3V Non-latching |
2.7~3.3V |
39~47mA |
70Ω |

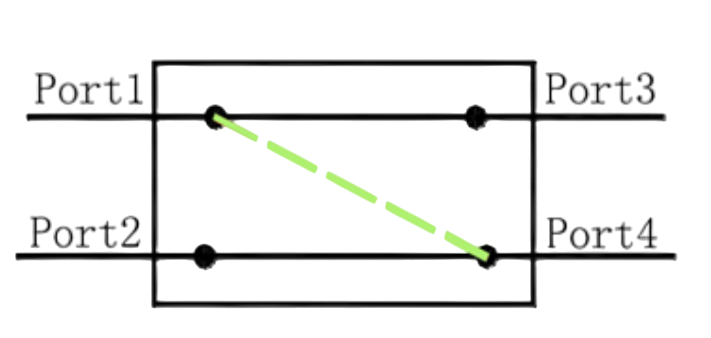

Optical Route

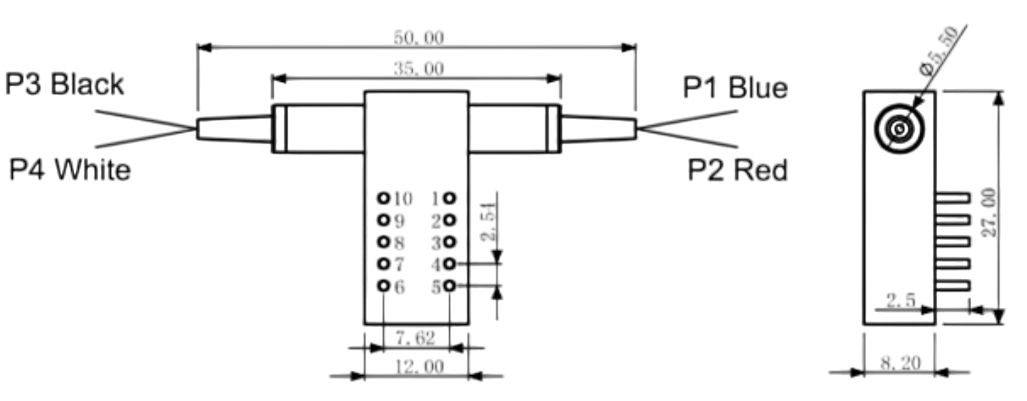

Dimension(mm)
Ordering Information: HC－OSW-2×2B-A-B-C-D-E-F
|
A |
B |
C |
D |
E |
F |
|
Test Wavelength |
Type |
Fiber Type |
Fiber Dimension |
Fiber Length |
Connector |
|
850: 850nm |
3L: Latching |
SM: Single Mode |
025: Φ0.25mm |
05: 0.5m |
00: None |
|
1310: 1310nm |
3N: Non-latching |
M1:Multi-mode 50/125 |
09: Φ0.9mm |
10: 1.0m |
FP: FC/UPC |
|
1550: 1550nm |
5L: Latching |
M2:Multi-mode 62.5/125 |
X: other |
15: 1.5m |
FA: FC/APC |
|
D: 1310/1550nm |
5N: Non-latching |
X: other |
X: other |
SP: SC/UPC |
|
|
X: other |
SA: SC/APC |
||||
|
LP: LC/UPC |
|||||
|
LA: LC/APC |
|||||
|
X: other |
If you need more support , Please contact us.
