100G DWDM Module
Features
Low Insertion Loss
Wide pass band
High Channel Isolation
High Stability and reliability
Epoxy-free on Optical Path
Applications
DWDM Network
Wavlength Routing
Fiber Optical Amplifier
CATV fiberoptic System
Technical Parameter
|
Parameter |
4 Channel |
8 Channel |
16 Channel |
||||
|
Mux |
Demux |
Mux |
Demux |
Mux |
Demux |
||
|
Channel Wavelength (nm) |
ITU 100GHz Grid |
||||||
|
Channel Ripple（dB） |
<0.3 |
||||||
|
Channel Spacing (GHz) |
100 |
||||||
|
Channel Passband (@-0.5dB bandwidth (nm) |
>0.25 |
||||||
|
Insertion Loss (dB) |
≤1.8 |
≤3.7 |
≤5. 5 |
||||
|
Channel Uniformity（dB） |
≤0.6 |
≤1.0 |
≤1.5 |
||||
|
Isolation (dB) |
Adjacent |
N/A |
>30 |
N/A |
>30 |
N/A |
>30 |
|
Non-adjacent |
N/A |
>40 |
N/A |
>40 |
N/A |
>40 |
|
|
Inertion Loss Temperature Sensitivity (dB/℃) |
<0.005 |
||||||
|
Wavelength Temperature Shifting (nm/℃) |
<0.002 |
||||||
|
Polarization Dependent Loss (dB) |
<0.1 |
<0.1 |
<0.15 |
||||
|
Polarization Mode Dispersion（ps） |
<0.1 |
||||||
|
Directivity (dB) |
>50 |
||||||
|
Return Loss （dB） |
>45 |
||||||
|
Maximum Power Handling (mW) |
300 |
||||||
|
Opterating Temperature (℃) |
-5~+75 |
||||||
|
Storage Temperature (℃) |
-40~85 |
||||||
|
Package dimension (mm) |
L100×W80×H10 |
||||||
|
L120×W80×H18 |
|||||||
|
L141×W115×H18 |
|||||||
* 1、Above specifications are for devices without connector.2、Specifications may change without notice.
Dimension (Unit:mm)

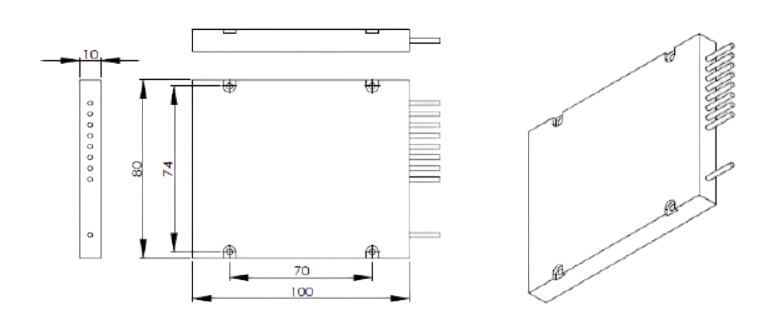

100×80×10mm

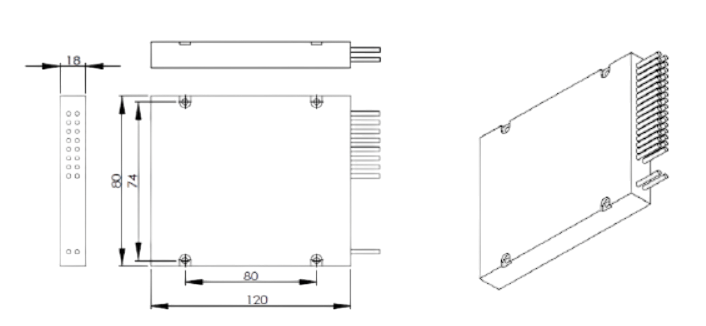

120×80×18mm

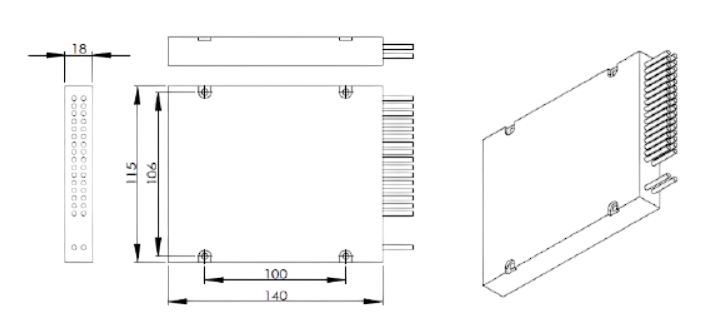

140×115×18mm
Ordering Information HC－DWDM－A－B－C－D－E－F－G
|
A |
B |
C |
D |
E |
F |
G |
|
Channel Spacing |
Number of Channels |
Configuration |
1st Channel |
Fiber Type |
Fiber Length |
In/Out Connector |
|
1=100GHz |
04=4 Channel 08=8 Channel 16=16 Channel
|
M=Mux D=Demux |
21=Ch21 …… 34=Ch34 …… 50=Ch50 …… 61=Ch61 |
1=Bare fiber 2=900um loose tube 3=2mm Cable 4=3mm Cable |
1=1m 2=2m S=Specify |
0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST 6=LC S=Specify |
