64 Channel 75G Flattop AAWG
Applications
The specifications serve for C-band
AWG Flattop MUX/DEMUX in DWDM system.
Technical parameter
Absolute Maximum Ratings
|
Parameters |
Conditions |
Specifications |
Unit |
|
Operating Temperature |
Non-Condensing Environment |
-5~+65 |
oC |
|
Storage Temperature |
Device Not Powered on Heater Element |
-40~+85 |
oC |
Optical Specifications
|
Wavelength Parameter |
Wavelength Ranges |
Units |
|
Center Frequency |
fc |
CH |
|
Working Bandwidth (ITU Band) -WB |
fc ± 31.5 |
GHz |
|
Isolation Bandwidth - IBW |
fc ± 9.0 |
nm |
|
Test Parameter |
Channel Ports |
Test Requirement |
Min |
Max |
Units |
|
0.5 dB net half Bandwidth |
>22.5 |
GHz |
|||
|
3 dB net half Bandwidth |
>36.0 |
GHz |
|||
|
Mux/demux Insertion Loss at ITU Grid EOL |
All ports at fc |
To be tested |
4.0 |
6.5 |
dB |
|
Insertion Loss Variation |
All ports at ITU |
To be tested |
1.5 |
dB |
|
|
Channel Isolation |
Adjacent Channel, |
To be tested |
13 |
dB |
|
|
Non-adjacent |
To be tested |
30 |
dB |
||
|
Return Loss |
All Ports |
To be tested |
36 |
dB |
|
|
Directivity |
All Ports |
Guaranteed by design |
45 |
dB |
|
|
PDL |
All Ports over WB |
To be tested |
1.1 |
dB |
|
|
All Ports @ ITU |
To be tested |
0.7 |
dB |
||
|
Differential Group Delay |
All Ports over WB |
Guaranteed by design |
1 |
ps |
|
|
Chromatic Dispersion (CD) |
All Ports over WB |
Guaranteed by design |
-33 |
33 |
ps/nm |
Channel Plan
|
ch # |
Wavelength (nm) |
Frequency (THz) |
ch # |
Wavelength (nm) |
Frequency (THz) |
|
|
1 |
1566.62 |
191.3625 |
33 |
1547.22 |
193.7625 |
|
|
2 |
1566.01 |
191.4375 |
34 |
1546.62 |
193.8375 |
|
|
3 |
1565.39 |
191.5125 |
35 |
1546.02 |
193.9125 |
|
|
4 |
1564.78 |
191.5875 |
36 |
1545.42 |
193.9875 |
|
|
5 |
1564.17 |
191.6625 |
37 |
1544.82 |
194.0625 |
|
|
6 |
1563.56 |
191.7375 |
38 |
1544.23 |
194.1375 |
|
|
7 |
1562.95 |
191.8125 |
39 |
1543.63 |
194.2125 |
|
|
8 |
1562.33 |
191.8875 |
40 |
1543.04 |
194.2875 |
|
|
9 |
1561.72 |
191.9625 |
41 |
1542.44 |
194.3625 |
|
|
10 |
1561.11 |
192.0375 |
42 |
1541.84 |
194.4375 |
|
|
11 |
1560.50 |
192.1125 |
43 |
1541.25 |
194.5125 |
|
|
12 |
1559.90 |
192.1875 |
44 |
1540.66 |
194.5875 |
|
|
13 |
1559.29 |
192.2625 |
45 |
1540.06 |
194.6625 |
|
|
14 |
1558.68 |
192.3375 |
46 |
1539.47 |
194.7375 |
|
|
15 |
1558.07 |
192.4125 |
47 |
1538.88 |
194.8125 |
|
|
16 |
1557.46 |
192.4875 |
48 |
1538.28 |
194.8875 |
|
|
17 |
1556.86 |
192.5625 |
49 |
1537.69 |
194.9625 |
|
|
18 |
1556.25 |
192.6375 |
50 |
1537.10 |
195.0375 |
|
|
19 |
1555.65 |
192.7125 |
51 |
1536.51 |
195.1125 |
|
|
20 |
1555.04 |
192.7875 |
52 |
1535.92 |
195.1875 |
|
|
21 |
1554.44 |
192.8625 |
53 |
1535.33 |
195.2625 |
|
|
22 |
1553.83 |
192.9375 |
54 |
1534.74 |
195.3375 |
|
|
23 |
1553.23 |
193.0125 |
55 |
1534.15 |
195.4125 |
|
|
24 |
1552.62 |
193.0875 |
56 |
1533.56 |
195.4875 |
|
|
25 |
1552.02 |
193.1625 |
57 |
1532.98 |
195.5625 |
|
|
26 |
1551.42 |
193.2375 |
58 |
1532.39 |
195.6375 |
|
|
27 |
1550.82 |
193.3125 |
59 |
1531.80 |
195.7125 |
|
|
28 |
1550.22 |
193.3875 |
60 |
1531.21 |
195.7875 |
|
|
29 |
1549.62 |
193.4625 |
61 |
1530.63 |
195.8625 |
|
|
30 |
1549.01 |
193.5375 |
62 |
1530.04 |
195.9375 |
|
|
31 |
1548.41 |
193.6125 |
63 |
1529.46 |
196.0125 |
|
|
32 |
1547.82 |
193.6875 |
64 |
1528.87 |
196.0875 |
Note: All specifications being applicable to both MUX and DEMUX
Mechanical Dimensions
120×70×11 (mm) Mux or DeMUX

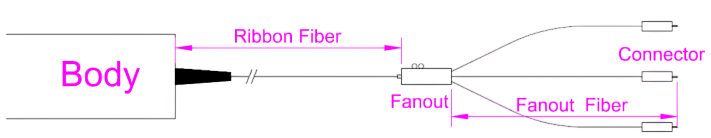

Pigtail and Conncetor
|
PARAMETER |
SPECIFICATION |
UNIT |
|
Pigtail Type (All ports) |
SMF28e with 900um Loose tube fiber |
|
|
Common Fiber |
500±50 |
mm |
|
Ribbon Fiber |
500±50 |
mm |
|
Fanout Fiber |
500±50 |
mm |
|
Connector Type (All ports) |
LC/UPC |
Ordering Information: HC-AWG-A-B-C-D-E-F-G-H-J
|
A |
B |
C |
D |
E |
F |
G |
H |
J |
|
Type |
Band |
Number of Channels |
Spacing |
1st Channel |
Chip Type |
Package |
Fiber Length (Total Length) |
In/Out Connector |
|
AAWG= Athermal AWG |
C=C-Band L=L-Band D=C+L-Band X=Customize |
16=16-CH 32=32-CH 40=40-CH 48=48-CH 96=96-CH XX=Special |
1=100G 2=200G 5=50G X=Special |
C62=C62 H61=H61 C60=C60 H59=H59 . XXX=special |
G=Gaussian F=Flat Top |
M=Module R=Rack X=Special |
1=0.5m 2=1m 3=1.5m 4=2m X=Specify |
0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=LC/APC 6=LC/PC 7=ST/UPC X=Specify |
Note: Typical channel plan: ITU wavelengths 50G H13(1566.72nm)-C61(1528.77nm).
