FWDM Module
Features
Low Insertion Loss
Ultra Flat Wide Passband
High Channel Isolation
High Stability and reliability
Epoxy-free on Optical Path
Wide Operating Wavelength Range
Applications
Testing Instruments
FTTH Tri-Play System
Technical Parameter
|
Parameter |
4 Channel |
8 Channel |
16 Channel |
32 Channel |
||
|
CATV Wavelength Range (nm) |
1540~1560 |
|||||
|
PON Wavelength Range (nm) |
1260~1360&1480~1500 |
|||||
|
Insertion Loss（dB） |
CATV-COM |
≤8 |
≤11.6 |
≤14.5 |
≤17.8 |
|
|
COM-PON |
≤0.6 |
|||||
|
Isolation(dB) |
COM-CATV(@PON) |
>30 |
||||
|
COM-CATV(@PON) |
>15 |
|||||
|
Insertion Loss Temperature Sensitivity (dB/℃) |
<0.005 |
|||||
|
Polarization Dependent Loss (dB) |
<0.1 |
|||||
|
Polarization Mode Dispersion (ps) |
<0.1 |
|||||
|
Directivity (dB) |
>50 |
|||||
|
Return loss (dB) |
>50 |
|||||
|
Maximum Power Handling (mW) |
300 |
|||||
|
Operating Temperature (℃) |
-20~+70 |
|||||
|
Storage Temperature (℃) |
-40~+85 |
|||||
|
Package Dimention(mm) |
For 4 |
100×80×10 |
||||
|
For 8 |
120×80×18 |
|||||
|
For 16,32 |
140×114×18 |
|||||
|
For 4,8,16,32 |
19’’1U |
|||||
*1、Above specifications are for devices without connector.2、Specifications may change without notice.
Dimension (Unit:mm)
A:100×80×10
B:120×80×18

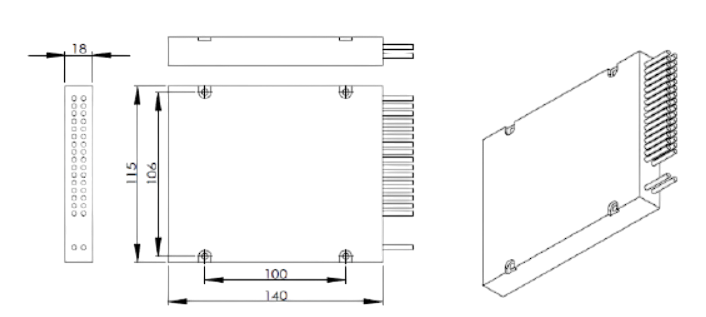

C:140×115×18
Ordering Information HC－FWDM－A－B－C－D
|
A |
B |
C |
D |
|
Wavelength |
Fiber Type |
Fiber Length |
Connector |
|
5/34=1550 pass/1310&1490 reflect |
4=4 Channel 8=8 Channel 16=16 Channel 32=32 Channe |
1=1m 2=2m
|
0=None FA=FC/APC FP=FC/PC SA=SC/APC SP=SC/PC T=ST LP=LC/PC LA=LC/APC S=Specify |
If you need more supports, Please contact us.
